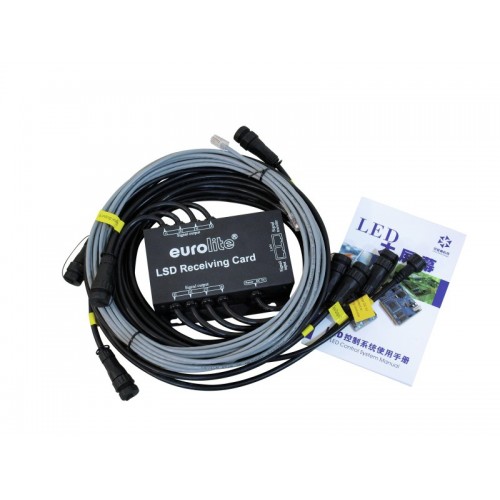

EUROLITE LSD Receiving card MK2
- Receiving interface for controlling LED soft displays with a computer
- For operation, the optional control system consisting of sending card and software LED studio (80503130) is required
- 1 receiving interface allows control of 128 (W) x 128 (H) pixels
- Serial connection of receiving interfaces possible for control of up to 1280 (W) x 1024 (H) pixels
- Multiple receiving interfaces can be controlled by one sending card
- Maximum distance between sending card and receiving interface: approx. 100 m
- 8 data signal outputs (each controls 128 (W) x 16 (H) pixels) for connection to LED display panels
- RJ-45 input and output
- Power supply via LED soft displays
- Supported files: text, word documents, all images (BMP, JPG, GIF, PCX...), all video (MPG, MPEG, MPV, AVI, VCD, DVD, SWF, RM, RMJ, ASF, MOV, etc.)
Технические характеристики:
| Power supply: | 5 V DC via LED display |
| Signal input: | LAN, CAT5E |
| Signal link: | LAN, CAT5E |
| Signal output: | 8 x 15-pin DIN jack |
| Dimensions (L x W x H): | 160 x 130 x 48 mm |
| Weight: | 1,87 kg |
| Height: | 13 cm |
| Depth: | 4,8 cm |
| Width: | 16 cm |
